We only do wholesale and agent. The following is the product category of our Electric Bike Electric Motorcycle Tricycle Factory.

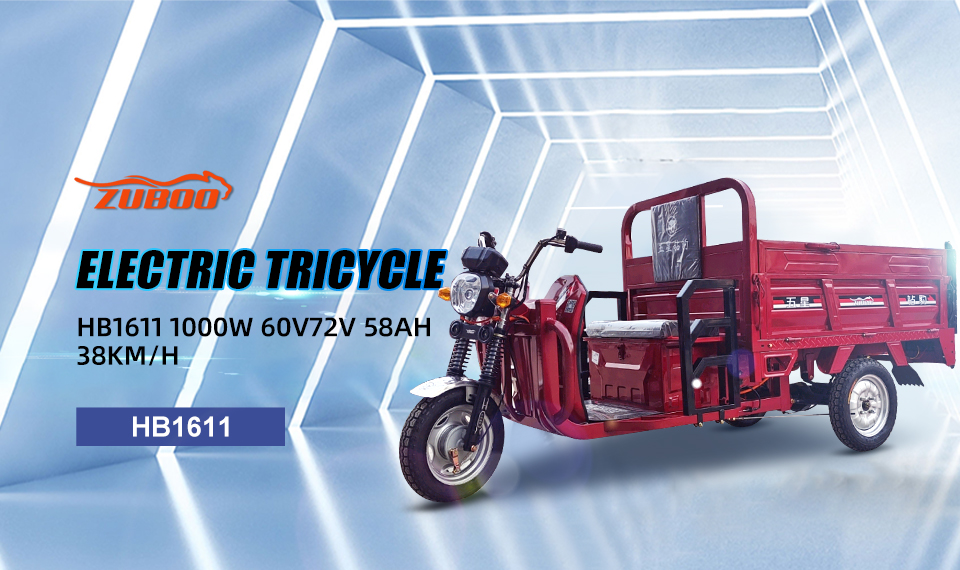

HB1611 Self Unloading 1000W 60V 72V 58Ah 38Km/H Electric Tricycle

Short Description:

● Battery: 60V72V 58Ah lead-acid battery

● Motor: 1000W (max speed: 38km/h)

● Full charge range: 60km

● Brake system: front and rear drum

● Color: Red, Green, Blue, Silver&White, Gray

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency

Payment: T/T, L/C, PayPal

Stock Sample is Available


Product Detail

FAQ

Product Tags

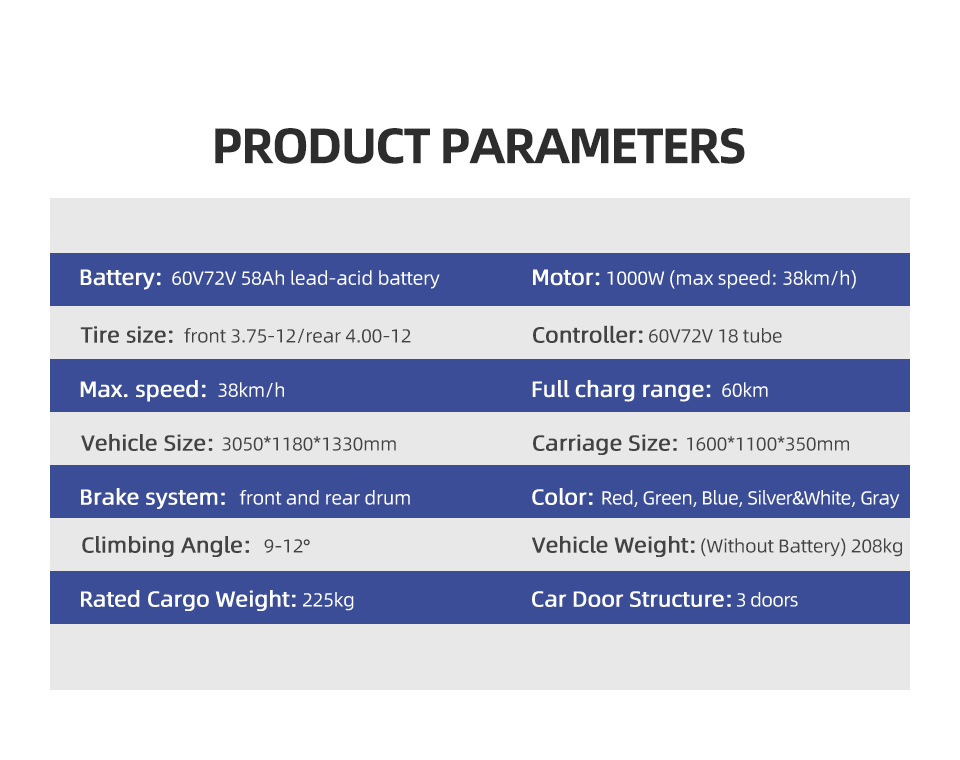

HB1611 Self Unloading

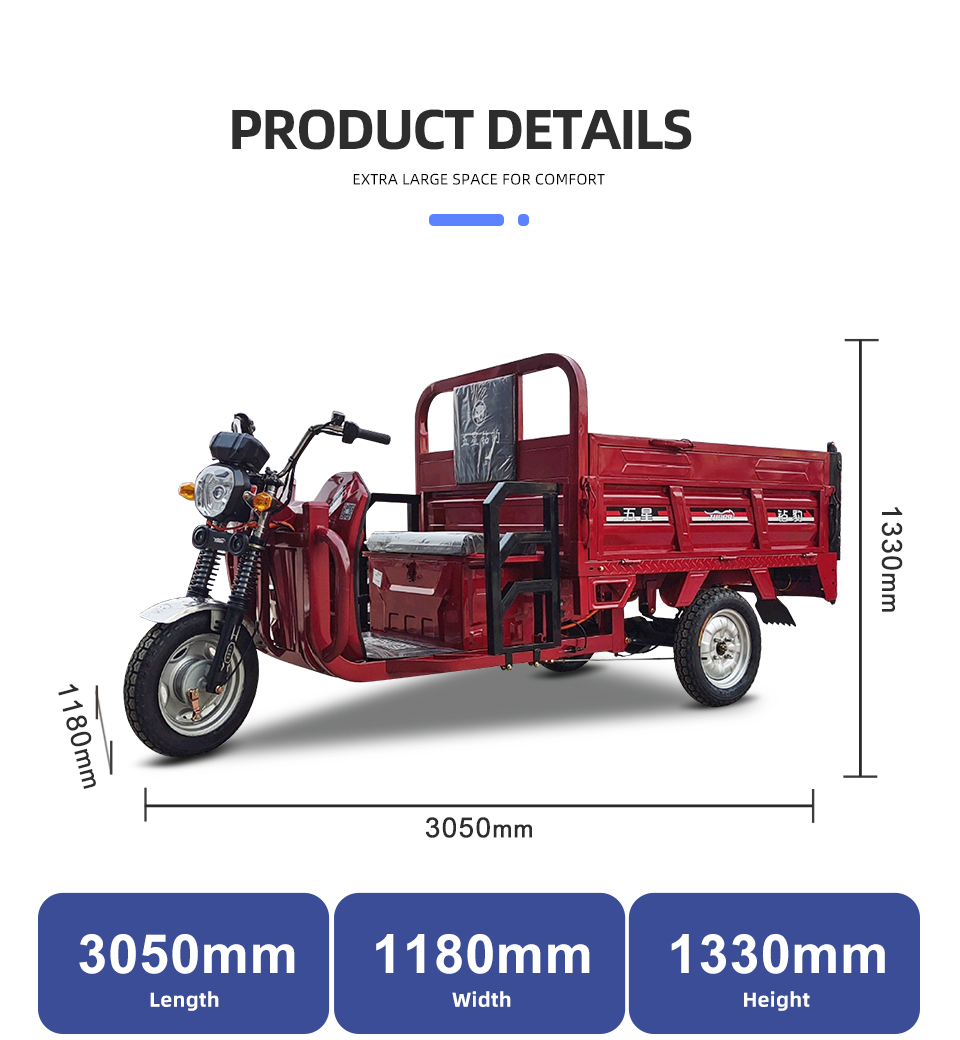

Vehicle Size 3050*1180*1330mm
Carriage Size 1600*1100*350mm
Battery 60V72V 58Ah Lead-Acid Battery
Full Charge Range 60km
Controller 60V72V 18 Tube
Motor 1000W (Max Speed: 38km/h)
Car Door Structure 3 Doors
Number of Cab Passengers 1
Rated Cargo Weight(kg) 225
Rear Axle Assembly Integrated Rear Axle
Front Damping System Ф37 Outer Springs
Rear Damping System Double Soft Connection 7 Kg Leaf Spring
Brake System Front And Rear Drum
Hub SPCC(steel)

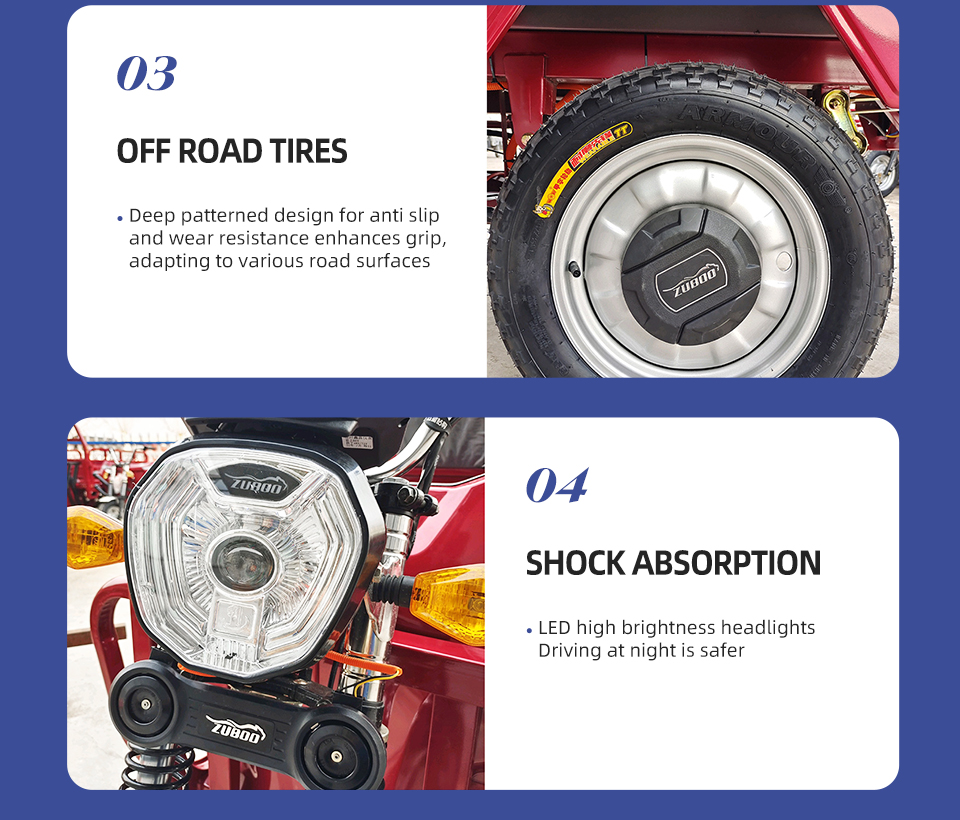

Front/Rear Tire Siz Front 3.75-12/Rear 4.00-12(Endurance)
Headlight LED

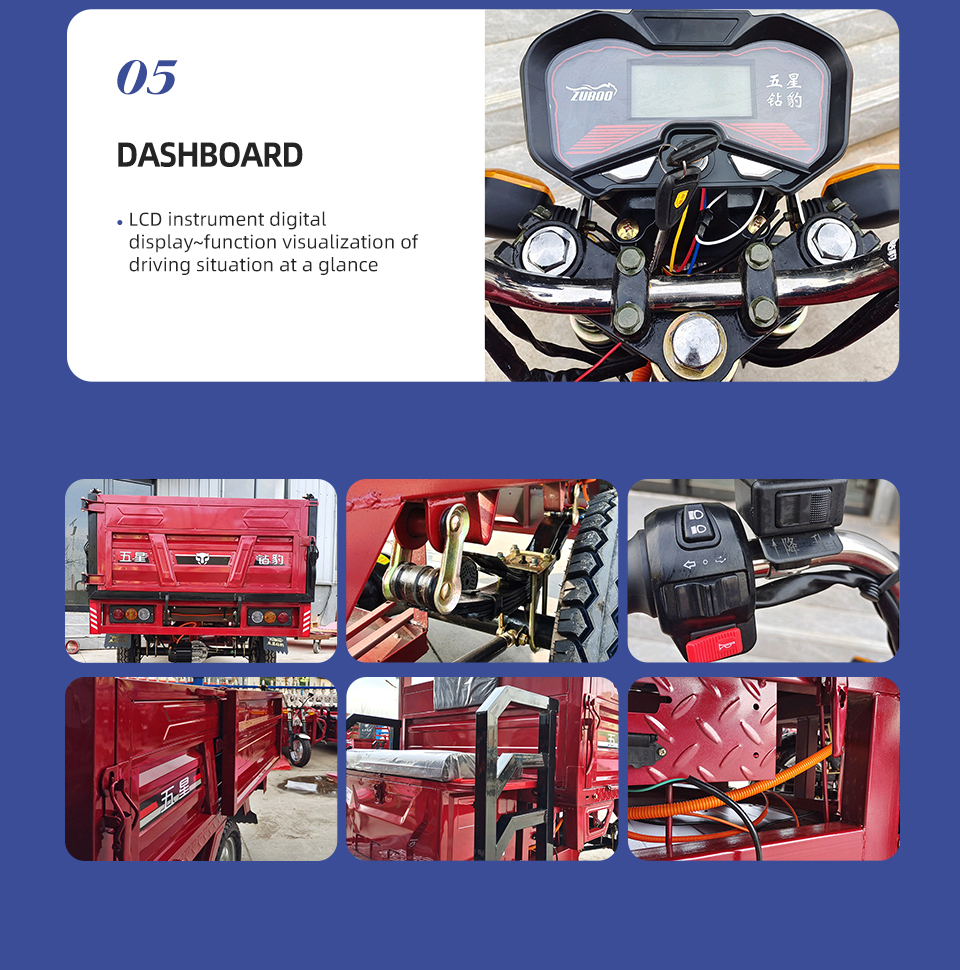

Meter LED
Rearview Mirror Rotatable And Foldable
Seat / Backrest Foam Cotton / Pearl Cotton
Front Bumper Q195 (Carbon Steel)
Horn Double Horn
Vehicle Weight (Without Battery) 208kg
Climbing Angle 9-12°

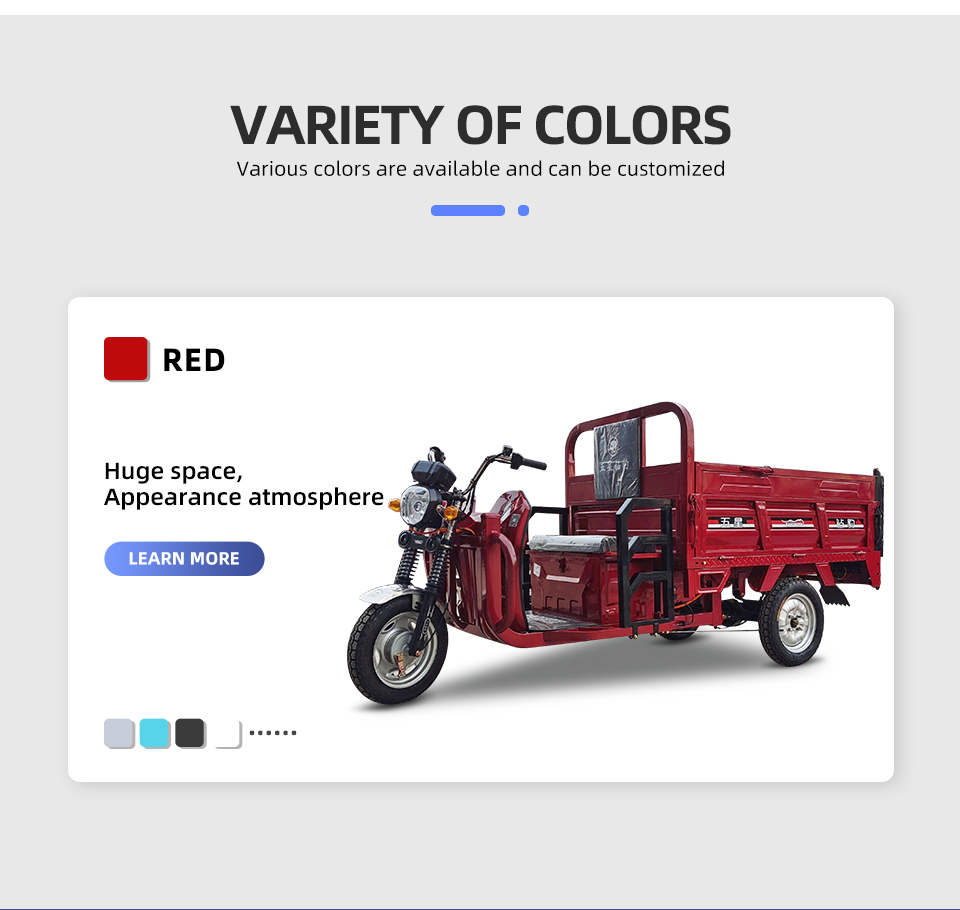

Color Red, Green, Blue, Silver&White, Gray



HB1611 Self Unloading 1000W 60V 72V 58Ah 38Km/H Electric Tricycle
HB1611 Self Unloading 1000W 60V 72V 58Ah 38Km/H Electric Tricycle
HB1611 Self Unloading 1000W 60V 72V 58Ah 38Km/H Electric Tricycle
HB1611 Self Unloading 1000W 60V 72V 58Ah 38Km/H Electric Tricycle
HB1611 Self Unloading 1000W 60V 72V 58Ah 38Km/H Electric Tricycle
HB1611 Self Unloading 1000W 60V 72V 58Ah 38Km/H Electric Tricycle
HB1611 Self Unloading 1000W 60V 72V 58Ah 38Km/H Electric Tricycle
HB1611 Self Unloading 1000W 60V 72V 58Ah 38Km/H Electric Tricycle
HB1611 Self Unloading 1000W 60V 72V 58Ah 38Km/H Electric Tricycle

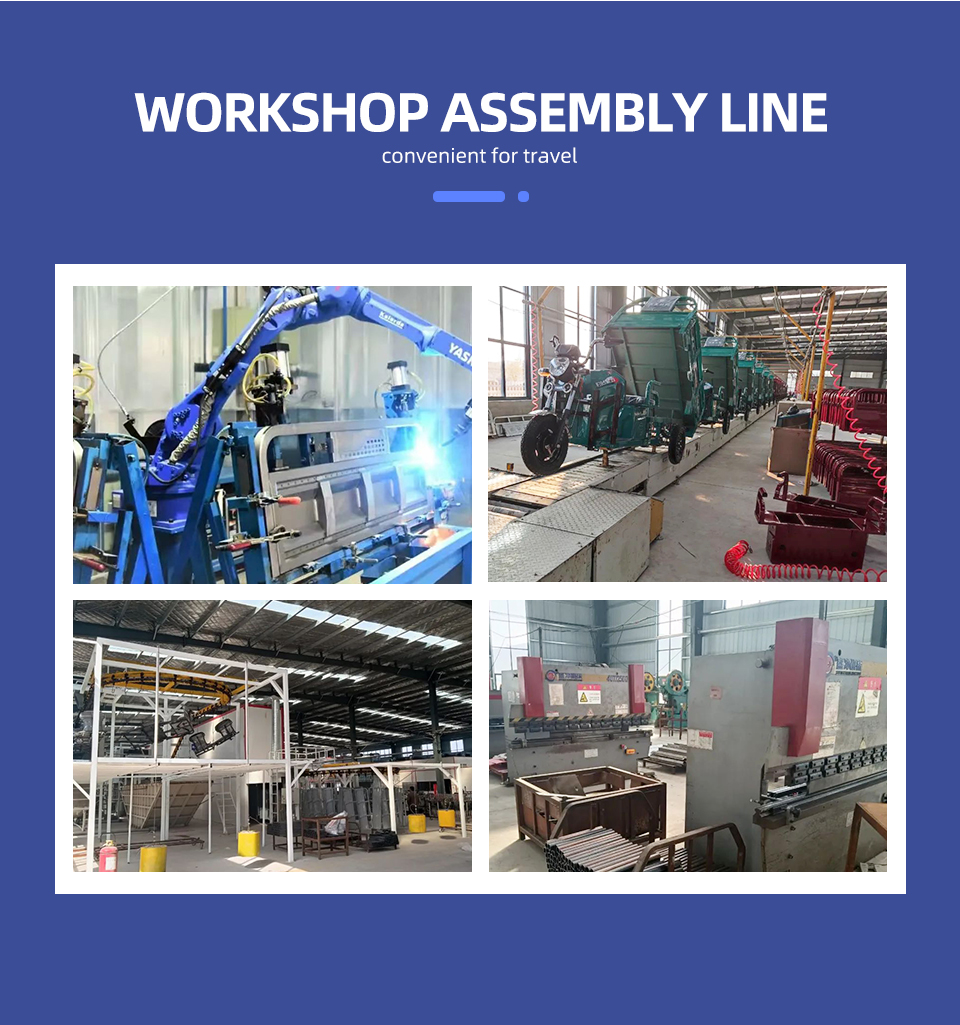

HB1611-Detail10

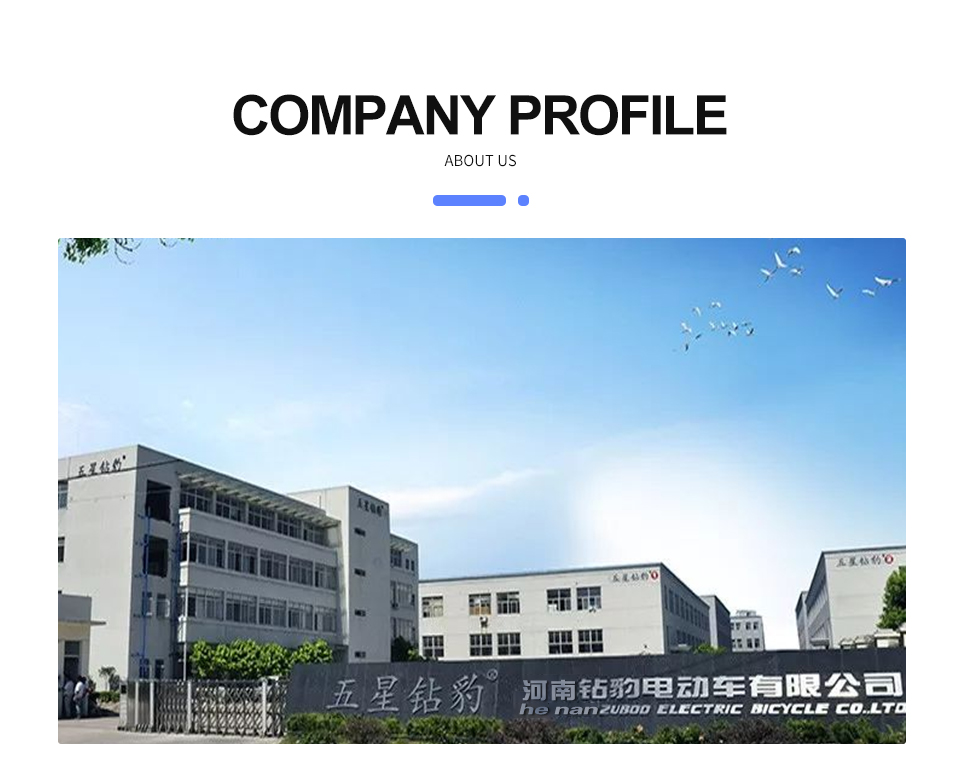

HB1611-Detail11

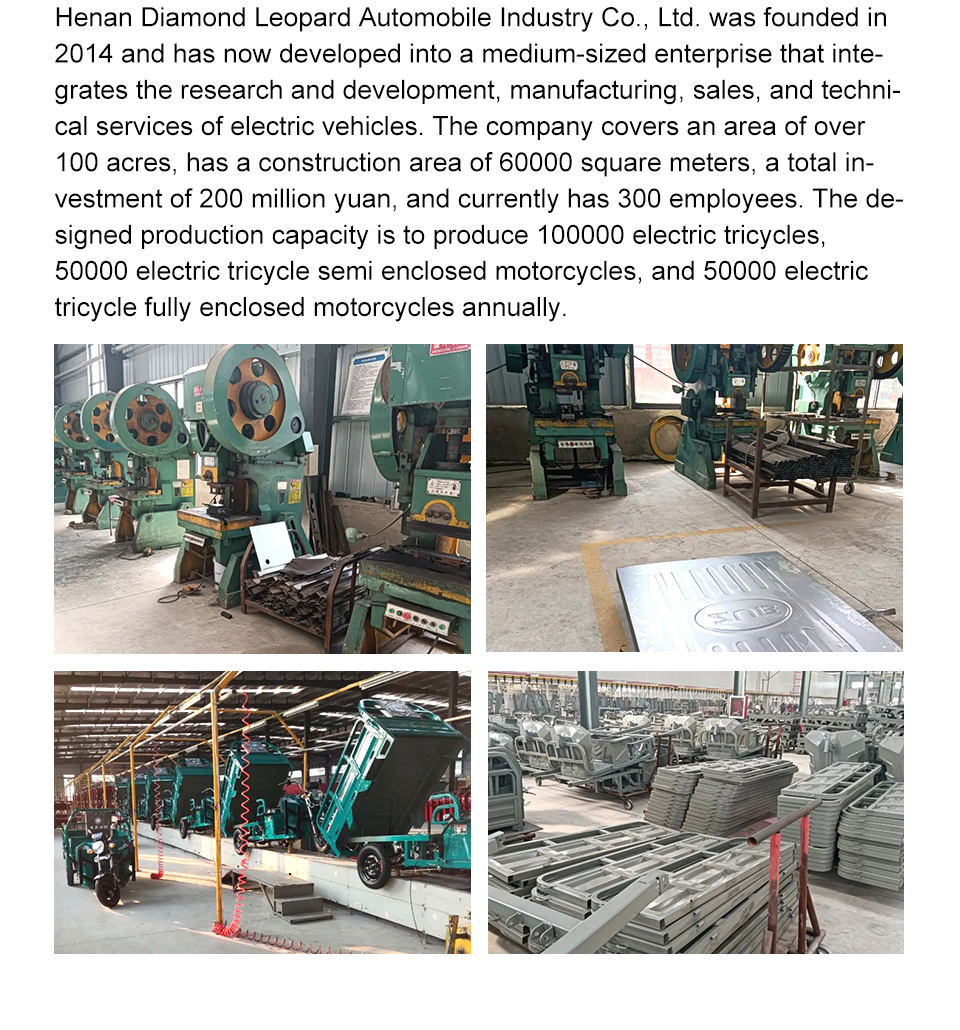

HB1611-Detail12

  • Previous:
  • Next:

  • Q:How can I order?

    A:Please contact us to confirm the models, configurations and quantities, we will explain the difference from different parts and recommend the best configuration based on your needs for your reference.

    Q:What is your sample policy?

    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q:What colors are available?

    A:We have many colors.And the color can be customized.

    Q:What if I don’t know how to install/assemble the tricycle?

    A:1.assembly Instructions will be offered for each tricycle.

    2.e-assembly drawing available.
    3.we will supply technical assistance and Video

     Q:What kind of business cooperation you offer ?

    A:We offer a wide range of choices:

    Distribution Cooperation including specific model distribution, certain area distribution and exclusive distribution.
    echnical Cooperation
    Capital Cooperation
    In forms of overseas chain store
